17.3 Filtering the display

Sometimes an object may contain so many items that the list is confusing. If this happens, use the Filter box to limit the display to only those items you are interested in.

This example below (continued from 17.1 Inspecting the current object) shows you how to filter the attributes list so that the only slots displayed are those you are interested in.

Type rep in the Filter box.

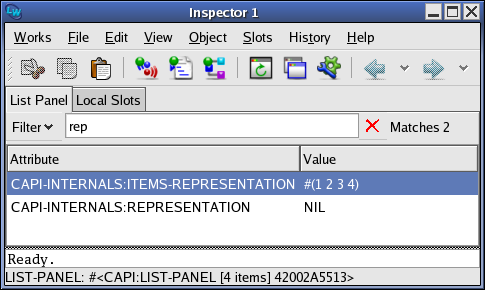

Using filters to limit the display in the Inspector

You can immediately see the slots with names that include "rep". The names of the slots, together with their slot values for the object being inspected, are displayed in the attributes list. For example, the representation slot currently contains nil.

17.3.1 Updating the display

In some circumstances your object might get modified while you are inspecting it, so you should be aware that the inspector display might need to be refreshed. To see this in the example continued from 17.3 Filtering the display:

  1. In the Listener tool call (capi:contain *), where the value of * should be the list-panel instance that you are inspecting.
  2. In the Inspector choose the command Works > Refresh or click the button. The Inspector should now appear as in The filtered inspector display, refreshed below.

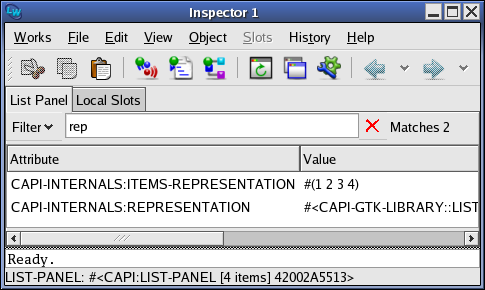

    The filtered inspector display, refreshed

Notice that the representation slot no longer has value nil. The list-panel instance has been modified by calling capi:contain, and the Inspector has been updated to show the new slot value.
