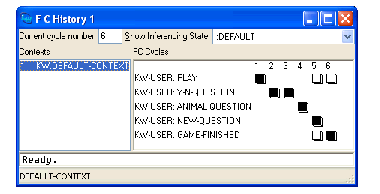

Figure 2.7 KnowledgeWorks Forward Chaining History
This is obtained by choosing
KnowledgeWorks >
FC History
. If you have just run the tutorial a window will appear of which the left column contains the entry
DEFAULT-CONTEXT
. These are all the contexts (rule groups) the forward chaining engine has executed (in this case only one). On the right is a detailed breakdown of what happened in each cycle within this context. You will see the rule names listed down the left, and the cycle numbers along the top. The boxes indicate which rules fired. In the last cycle, you will see a black box indicating that the rule
GAME-FINISHED
fired, and a outlined box for the rule
PLAY
. This means that the rule
PLAY
could have fired, but that
GAME-FINISHED
was preferred.
Look at the definition for
GAME-FINISHED
(find the source using the Rule Browser) and notice that it contains
:priority 15
. This means that the
GAME-FINISHED
rule has higher priority than the
PLAY
rule (which has the default value of
10
), and so was preferred. Other methods of conflict resolution are also available.
